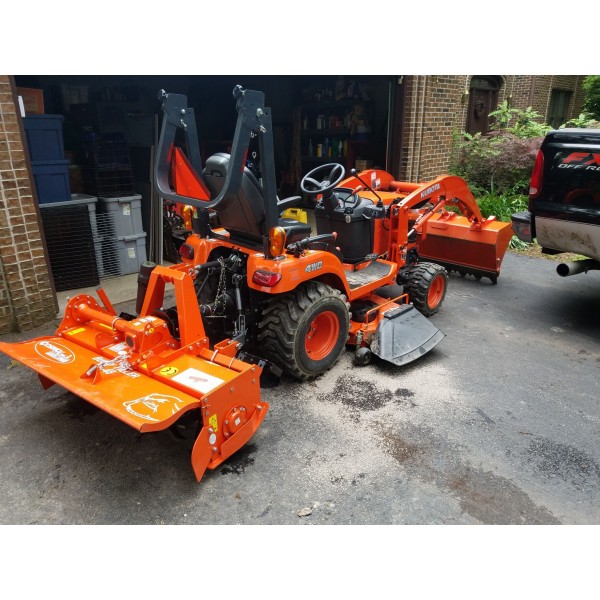

Cosmo Rotary Tillers
PTO shaft with slip clutch is included with each tiller: series 4 with 48" and 60", series 5 with 72", series 6 with 84"
UL48 Specs:
Total width: 53"
Tilling width: 48"
Tractor HP range: 20-25 HP
6 flanges on rotor
36 tines
Size of blades: 16 x 11.5 x 6 CM
PTO input speed: 540 RPM
Rotor shaft speed: 245 RPM
Maximus working depth: 6.5"
Rotor tube diameter: 7 cm
Rotor swing diameter: 37.5 cm
Weight in crate: 562lb
UL60 Specs:
Total width: 65"
Tilling width: 60"
Tractor HP range: 25-40 HP
7 flanges on rotor
42 tines
Size of blades: 16 x 11.5 x 6 CM
PTO input speed: 540 RPM
Rotor shaft speed: 245 RPM
Maximus working depth: 6.5"
Rotor tube diameter: 7 cm
Rotor swing diameter: 37.5 cm
Weight in crate: 610lb
UM72 Specs:
Total width: 77.5"
Tilling width: 72"
Tractor HP range: 25-50 HP
9 flanges on rotor
54 tines
Size of blades: 18 x 11.8 x 6 CM
PTO input speed: 540 RPM
Rotor shaft speed: 241 RPM
Maximus working depth: 7"
Rotor tube diameter: 7.6 cm
Rotor swing diameter: 43.4 cm
Weight in crate: 928lb
UH84 Specs:
Total width: 90.25"
Tilling width: 84"
Tractor HP range: 50-65 HP
9 flanges on rotor
54 tines
Size of blades: 18 x 11.8 x 6 CM
PTO input speed: 540 RPM
Rotor shaft speed: 241 RPM
Maximus working depth: 7"
Rotor tube diameter: 3.5"
Rotor swing diameter: 19"
Weight in crate: 992lb
